Quick installation
The starting point of Quick Seat Mount: a mount designed for quick seat installation.
QUICK SEAT MOUNT
Your seat.
Quick insertion.
Quick Seat Mount is the quick-install kayak seat mount. See the Quick system in action.
Discover the Quick system ↘Quick installation0 / +87 mmFor your kayak seat
01 / THE PRODUCT
Stable while paddling.
Comfortable while fishing.
Two positions for different moments on the water: a low seat while paddling, a raised seat for fishing and onboard tasks.
Position 0 · Paddling
Keeps the seat low and the centre of gravity close to the kayak while paddling.
Position +87 mm · Fishing
Raises the seat by 87 mm to make onboard tasks easier while fishing.
02 / IN DETAIL
A closer look
at the system.

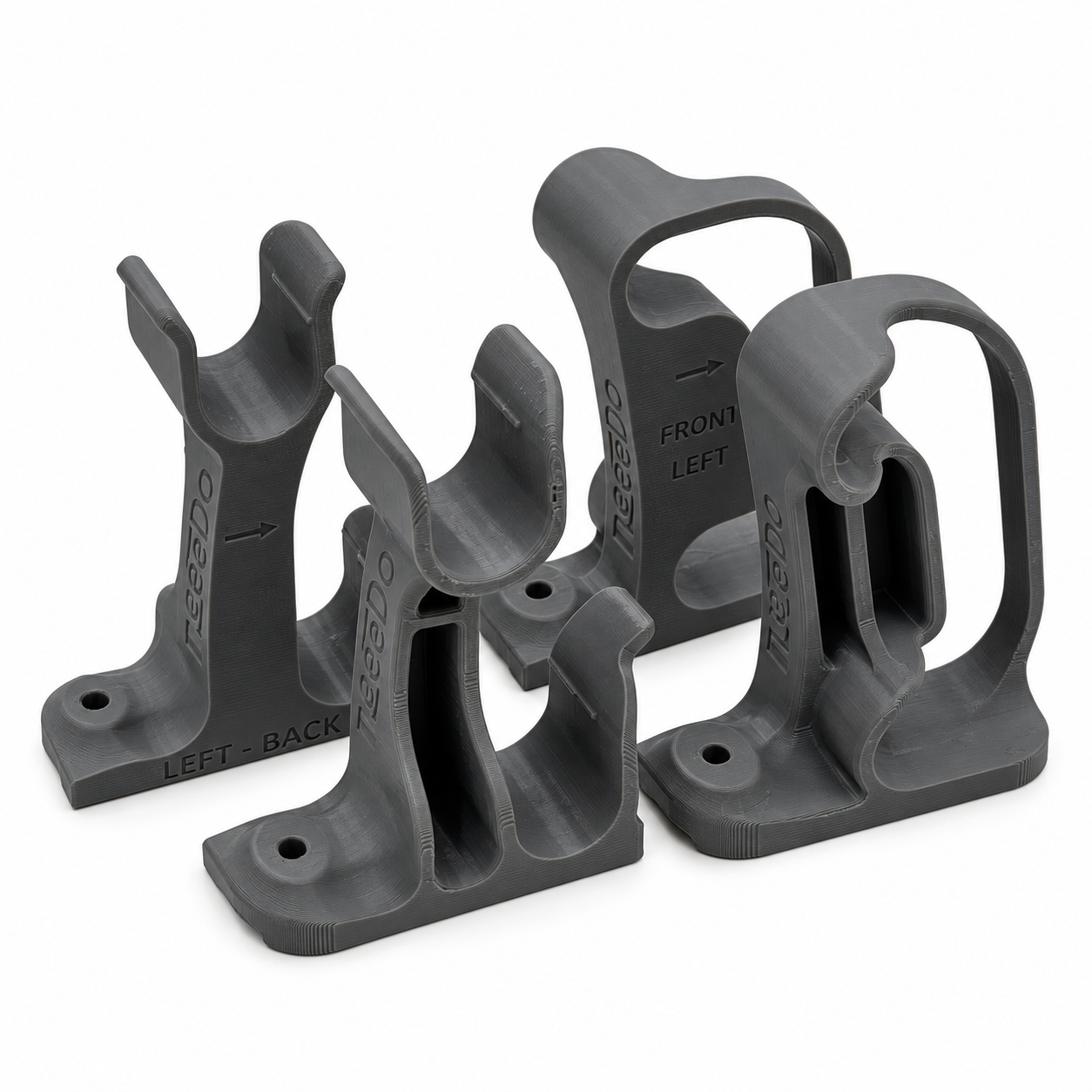

Four PETG supports, made using FDM printing, make up the Quick Seat Mount system.
- Material
- PETG
- Manufacturing
- FDM printing
- Complete kit weight
- 475 g
- Seat positions
- 0 / +87 mm
03 / COMPATIBILITY
Check your seat.
Check the frame diameter and the rails. Measurements A and B apply exclusively to the front feet of the seat.
- Seat tube diameter
- 25 mm / 1″
- External rail width
- 20 mm
- Fastening
- M6

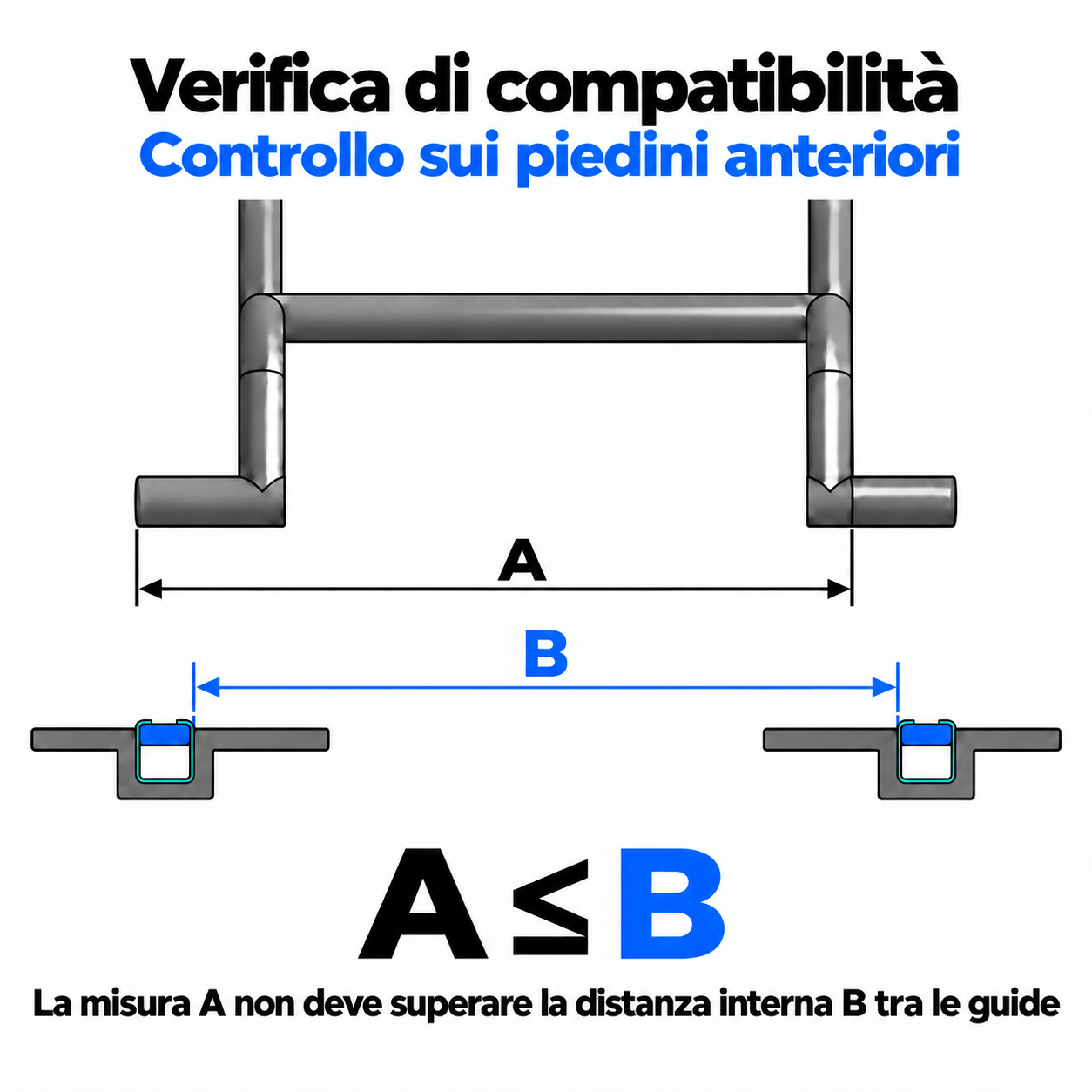

- Measure A on the front seat feet: from the outer end of one front foot to the surface of the opposite front upright shown in the diagram.
- Measure B on the front rails: the inner spacing between the two front rails at the support locations and reference points shown.
- Check A ≤ B: the seat measurement must not exceed the available spacing between the rails.
This check applies exclusively to inserting the front feet of the seat. Use the reference points shown in the diagram.
Do the front seat feet prevent insertion?
If A exceeds B, the projecting front seat feet may prevent the frame from passing through during insertion.

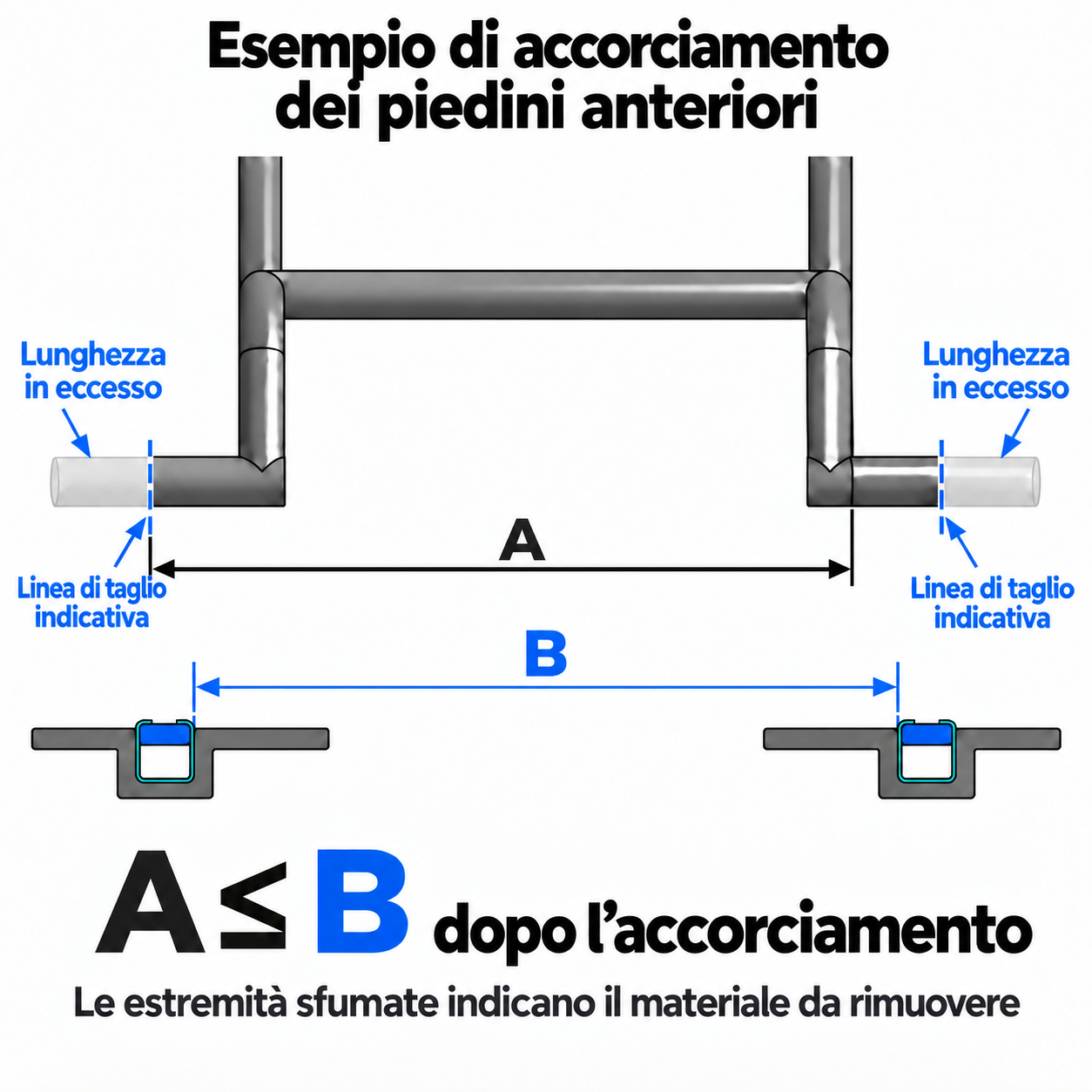

The diagram shows an example of shortening only the ends of the front seat feet to bring A within B. The cut lines are illustrative: the amount to remove depends on your seat and the rail spacing.
Before modifying the frame, check that the adaptation is suitable for the seat and does not compromise its attachment or integrity. This diagram does not specify a universal cutting length.
04 / THE KIT
Inside the box.

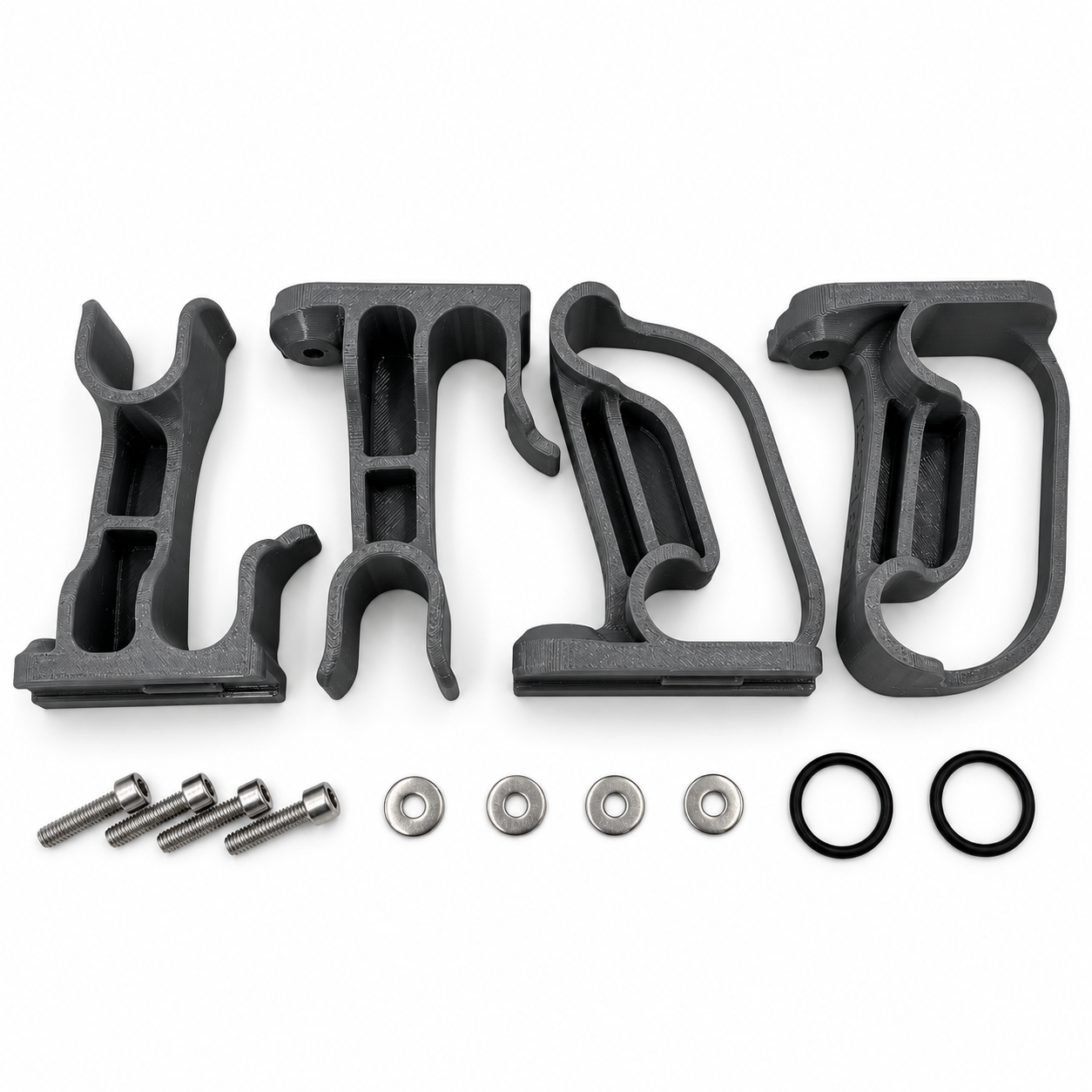

- 4 FDM-printed PETG supports
- 4 M6 × 35 mm screws
- 4 washers
- 2 O-ring
Complete kit weight: 475 g.
05 / VIDEOS
Discover it. Install it.
The Quick Seat Mount presentation and installation guide.
Quick Seat Mount in action
How to install Quick Seat Mount
Videos are hosted on YouTube. The player loads only after your choice; no requests are sent to YouTube beforehand. Google Privacy.
06 / WHERE TO BUY
Your next outing
starts here.
We are finalising our sales channels.
Buy the kit on Etsy, or get the files on Cults3D to 3D print it yourself.
07 / COMING NEXT
The next chapter.
Neeedo FlowPlate
Neeedo KayProp V1
Pedal Drive
08 / CONTACT
Have a question?
Let’s talk.
Contact us about Quick Seat Mount, compatibility, purchasing or becoming a reseller.
